ZC-520T GPON ONT CATV ONU 1GE 3FE 1POTS WIFI WDM AGC For FTTx Solutions

Name: ZC520T GPON ONT CATV ONU 1GE 3FE 1POTS WIFI WDM AGC For FTTx Solutions
Brand: ZIKUN
Price: 25 USD

Quality ZC-520T GPON ONT CATV ONU 1GE 3FE 1POTS WIFI WDM AGC For FTTx Solutions for sale

Brand Name : ZIKUN

Model Number : ZC-520T

MOQ : 1

Price : 25$

Payment Terms : T/T

Delivery Time : 5-15 work days

Type : GPON ONU

Network coverage radius : 20km

Use : FTTx Solutions

Optical connector : SC/UPC

User interface : 3*10/100M RJ45,1*10/100/1000M RJ45,1*CATV,1*VOIP, 1*WiFi

WiFi : IEEE 802.11b/g/n WIFI((300Mbps)

Contact Now

Zikun CATV ONU ZC-520T GPON ONT with 1GE+3FE+1CATV+1VOIP+WiFi

ZC-520T is a fast, convenient, flexible, secure and highly integrated GPON broadband connection device. It provide 3FE +1 GE interface, 1CATV interface,1 VOIP interface , and 1 WiFi interface, it’s very suitable for home and small business users and can meet the requirements of FTTH high speed data transfer.

Tips: Accept OEM/ODM service;
Compatible with other mainstream brand OLT;

Can Access the onu through http/telnet from LAN&WAN-side

Features

Integrated GPON port, conform with ITU-T G.984 standard;
Services effectively, provide 10/100/1000M RJ45 network interface, update existing networks smoothly;
The Dynamic Bandwidth Allocation (DBA) mechanism enables all users to share the bandwidth reasonably, guarantee the QoS;
Support IGMP multicast, make use of the bandwidth effectively;
Support multicast VLAN;
Support OMCI management protocol, including configuration, alarm, performance monitor, fault isolation and security management etc, support remote management through OLT;
Support FEC and DBA;
Support IEEE802.1Q VLAN protocol;
Support IEEE802.1p protocol;
Support remote loopback and network status diagnosis;
Support cyber storm control.

Specifications

Model	ZC-520T
User interface	310/100M RJ45,110/100/1000M RJ45,1CATV,1VOIP, 1*WiFi
PON	Transmission speed :upstream 1.25Gbps /downstream 2.5Gbps Network coverage radius: 20km Optical receive sensitivity: ≥-28dBm Luminous power: <0dBm Security: ONU authentication mechanism
WiFi	IEEE 802.11b/g/n WIFI((300Mbps)
Protocol	Compliant with IEEE 802.3ah YD/T 1475-2006 IEEE 802.1D, Spanning Tree IEEE 802.1Q, VLAN IEEE 802.1b/g/n IEEE 802.1w, RSTP IEEE 802.3ad (LACP) Ethernet–II, Ethernet-SNAP
VLAN	Port-based VLAN GVRP IEEE 802.1Q VLAN
QoS	Backpressure flow control(half-duplex) IEEE 802.3x flow control(full-duplex) Prevent head of line WR, SP queue scheduling algorithm Port rate limit
Security	IEEE 802.1x, access control based on port; support local and remote RADIUS CHAP,EAP certification Storm control, port protection
Management	Support various management modes such as Web, TELNET Support debug function
Environment	Operating temperature: 0℃～60℃; Operating humidity: 10%～85% (no-condensation)
Environment	Storage temperature: -40℃～80℃; Storage humidity: 5%～95% (no-condensation)
Power supply	Input AC 110～240V Output DC 12V/1A
PowerConsumption	12W

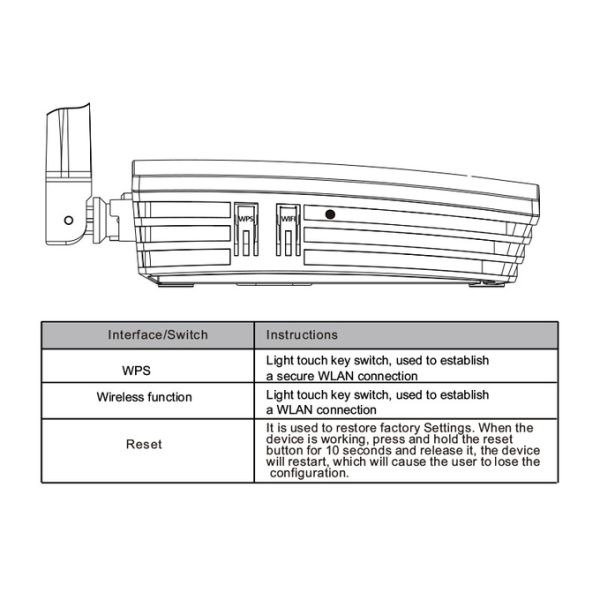

Product interface and LED definitions
